اسپرینکلر بالازن واکنش سریع

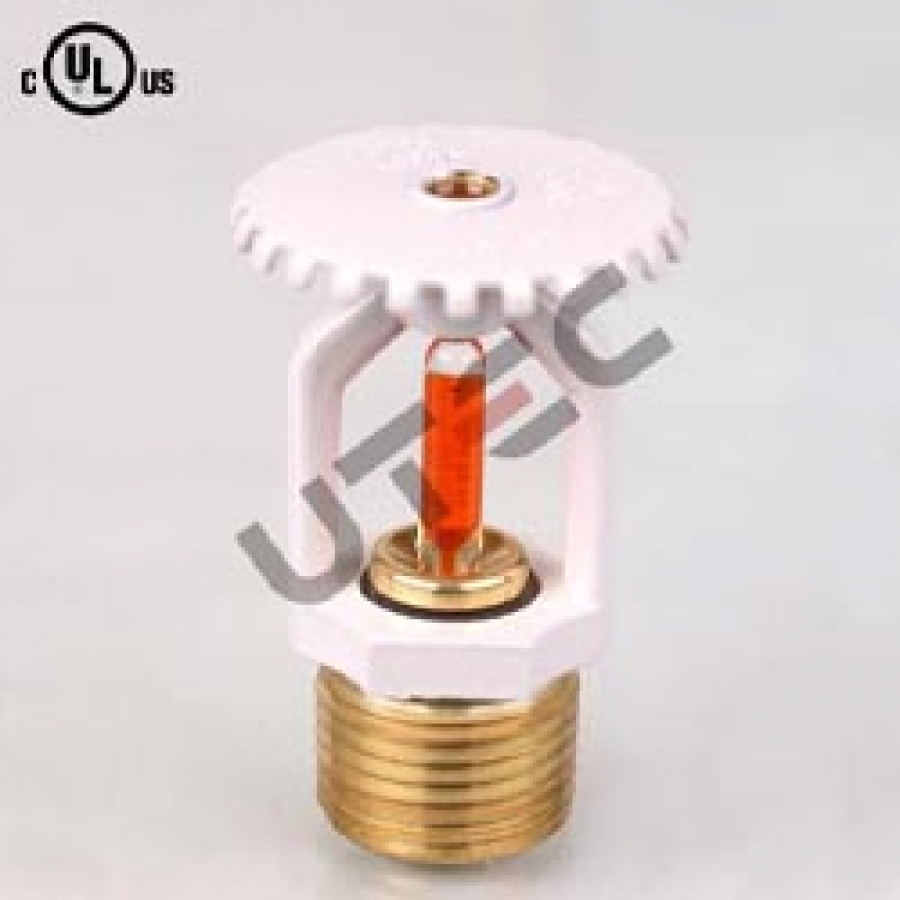

Ut0004 Upringht Sprinkler
Upright sprinkler is designed for use in automatic sprinkler systems designed in accordance with standard installation (NFPA13). The temperature response is standard response 5mm glass bulb and fast response 3mm glass bulb. The sprinklers come with compact design. available in different finishes and temperature ratings.

DESCRIPTION
Upright sprinkler is designed for use in automatic sprinkler systemsdesigned in accordance with standard installation (NFPA13).
The temperature response is standard response 5mm glass bulb and fast response 3mm glass bulb. The sprinklers come with compact design. available in different finishes and temperature ratings.
The sprinklers body is made of brass forging copper alloy (DZR). The spring seat consists of a spring Belleville washer coated on both side with a Teflon tape.
Pendent and conventional and sidewall sprinklers are installed with adjustable or non-adjustable escutcheon plates. These are intended to be installed finished ceilings. Escutcheon plate adjustment provides convenience in pendent and conventional sprinkler installation in case of areas with finished ceiling or walls.

TECHNICAL SPECIFICATION

Style

Pendent, Upright, Sidewall, Conventional and Recessed Pendent,Recessed Sidewall, Recessed Conventional

K Factor

gpm/(psi)½ L/min(bar)½

5.6 (80)

Nominal Thread Size

1/2” NPT OR 1/2” BSPT

Max. Working Pressure

175 PSI (12BAR)

Factory Test Pressure

500 PSI (35BAR)

Min. Operating Pressure

7 PSI (0.5 BAR)

Finish

Brass and Chrome Plated and White Plated Available





































Sprinkler System
